Laser mode: | Fractional Co2 laser |
Wavelength: | 10600nm |
Pulse Power: | 40w |
Power supply | 220V/110V 50Hz/60Hz |
Control: | Touching switch, microprocessor-controlled |
Screen: | 10 inch color touch screen |
Working mode: | Continuous; Single pulse; Repeat pulse; Super pulse. |
Scan Pattern : | Triangle/Square/Rectangle/Rhombus/Circle |
Dot quantity: | 400 dots at most |
Working mode: | ractional; Normal; Vaginal |
Pulse Radio frequency: | 0.530W |
Scan modes | Sequence scan or Random scan or maximum distance scan |
Pulse energy: | 10mj~200mj (every stepping:2mj) |
Condenser focus: | f=100mm |
Beam divergence angle: | 0.3 mrad |
Spot size: | 0.12-1.25mm (Adjustable) |
Radiation time: | 0.1~1 ms |
Interval time: | 1-5000ms |
Pulse Duration: | 0.1~10ms |
Pulse Interval: | 1ms~100ms (every stepping:1mj) |
Pulse distance: | Pulse distance: |
Aiming beam: | 635nm |
Cooling system: | air cooling |

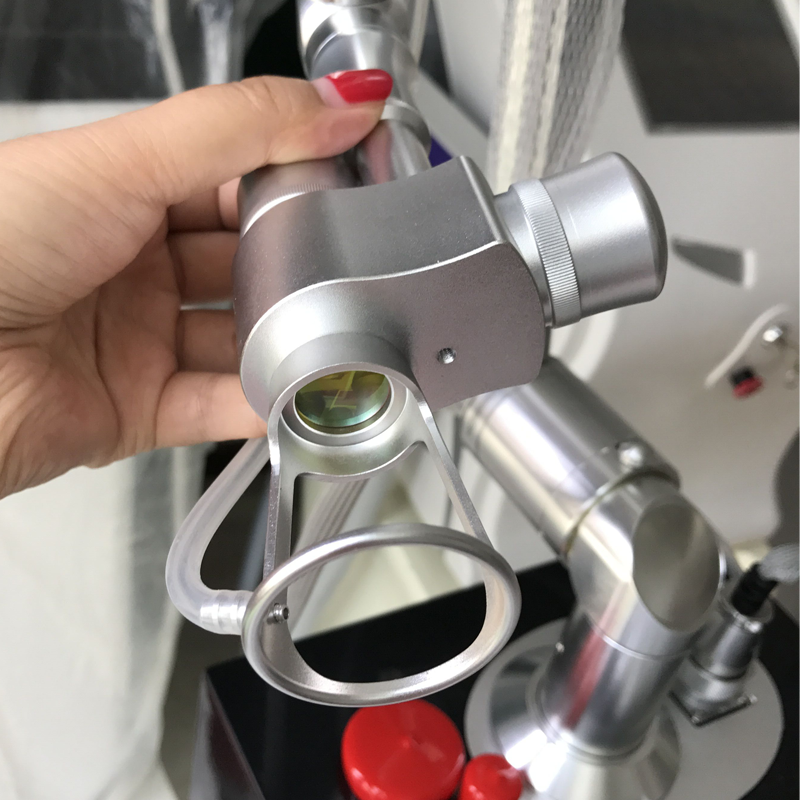

Beam delivery: | Articulated arm with 7-joint with 360 degree roatating |
Warning up time: | 5 min |
Spots density | 36 spots / cm, 144spots / cm, 576spots / cm, with intermittent loading |
N. weight (kg): | 65kg |
Size: | 64x60x122cm |
